Full HD Signal Distribution 60m HDMI Extender Over CAT5 / CAT6 EDID 1080P / 720P

    Buy cheap Full HD Signal Distribution 60m HDMI Extender Over CAT5 / CAT6 EDID 1080P / 720P from wholesalers

    Buy cheap Full HD Signal Distribution 60m HDMI Extender Over CAT5 / CAT6 EDID 1080P / 720P from wholesalers
    • Buy cheap Full HD Signal Distribution 60m HDMI Extender Over CAT5 / CAT6 EDID 1080P / 720P from wholesalers

    Full HD Signal Distribution 60m HDMI Extender Over CAT5 / CAT6 EDID 1080P / 720P

    Ask Lasest Price
    Brand Name : AEO
    Certification : CE, FCC
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 10000 pairs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Full HD Signal Distribution 60m HDMI Extender Over CAT5 / CAT6 EDID 1080P / 720P

    HDMI Extender Over CAT5/CAT6 up to 60m 1080P Full HD Signal Distribution EDID 1080P /720P


    The main features of the 60m HDMI Extender:

    1. Low power consumption, low temperature and high safety;

    2. Support EDID managment

    3. Transmission format 1080P


    Technical Paramaters:

    Length of CAT5e/CAT6 cable between Rx and TX …………….......................... 60 meters
    HDMI Input …..…………………...………..................... 1080p/720p/576p/576i/480p/480i
    HDMI Output …..…………….….................................. 1080p/720p/576p/576i/480p/480i
    Max bandwidth ………………………………………………………………………….. 340MHz
    Max baud rate ……………….…….………………….………….…………………... 3x3.4Gbps
    Input video signal ………….…………………………………………….…...... 0.5~1.5Volts p-p
    Output DDC signal …………………………………………………................. 5Volts p-p (TTL)
    Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable
    Output HDMI cable distance ....................................... ≤15m AWG26 HDMI standard cable
    TX Max working current ………………………………………...………….……………. 500mA
    RX Max working current …………………………………………...…………………….. 300mA
    Operating Temperature range ……..…………….……………………….......…… (0 to +45)
    Operating Humidity range ………………………….…..…… 5 to 90%RH (No Condensation)
    Dimension (L x W x H) ……………………………….……………........……… 64x59x22(mm)
    TX Weight …..……………………………………………..……………………….........…… 53g
    RX Weight ..................................................................................................................... 53g

    OverviewFull HD Signal Distribution 60m HDMI Extender Over CAT5 / CAT6 EDID 1080P / 720P

    The Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

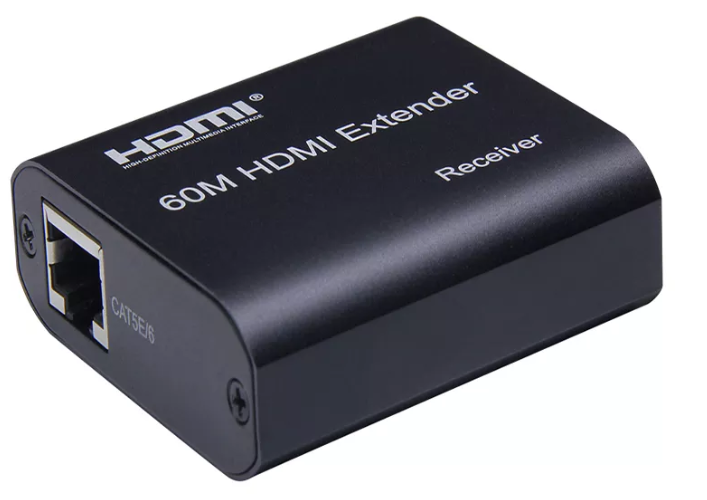

    Product picture


    Packaging & Shipping

    ● All of our package are international standard package

    ● We will deliver our products as soon as the order confirmed
