Industrial DB9 RS485 / RS422 / RS232 Fiber Optic Modem

1. Description

Industrial RS485/RS422/RS232 Fiber Media Converter is a sort of more function and economy RS-485/422 interface optic fiber MODEM. It is the best choice to connect RTU to HOST or SC ADA controller. It used Optic fiber as transfer medium, increase the transfer function of system. Communication equipment abstain menace effective to lightning strike, surge, electromagnetism disturb under the secure environment.

2. Function and Characteristic

a) Support RS-485/RS-422 interface

b) Asynchronous, point to point, rate up to 120Kbps

c) Support 5V DC power input

d) 1500W surge protection, 15KV static protection

e) RS-485/422 port support 32 node (can choice hand-tailor 128 Node)

f) Working wavelength: 1310nm

g) Auto test signal rate, zero delay auto transmit

3. Performance guideline

Interface: support EIA RS-485, RS-422 standard

Rate: 0-120Kbps

Transmit distance: RS-485/422 port 1200m, optical port multi-mode 2KM, single-mode 20KM

Working environment: -25℃ to 70℃

4. Appearance guideline

Interface type: 5 bit terminal block (RS-485/422), multi-mode choice ST/SC/FC interface, single-mode choice FC/SC/ST interface

L*W*H: 100mm*69mm*22mm

Shell: Iron

Color: White

Weight: 230g

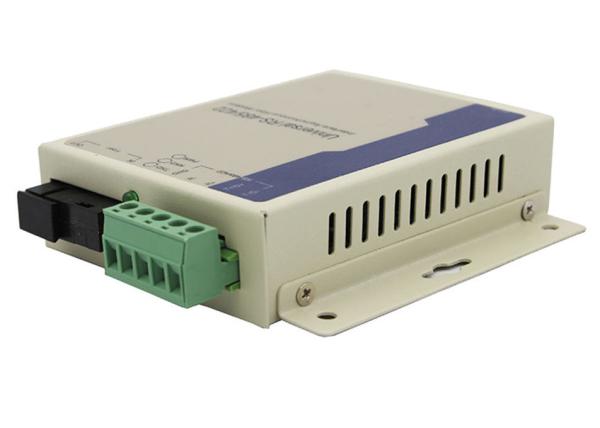

Product Picture
