1x2 SDI Distribution Amplifier with 1 Input And 2 Outputs

    Buy cheap 1x2 SDI Distribution Amplifier with 1 Input And 2 Outputs from wholesalers

    Buy cheap 1x2 SDI Distribution Amplifier with 1 Input And 2 Outputs from wholesalers
    • Buy cheap 1x2 SDI Distribution Amplifier with 1 Input And 2 Outputs from wholesalers

    1x2 SDI Distribution Amplifier with 1 Input And 2 Outputs

    Ask Lasest Price
    Brand Name : AEO
    Certification : CE, FCC
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 10000 pairs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

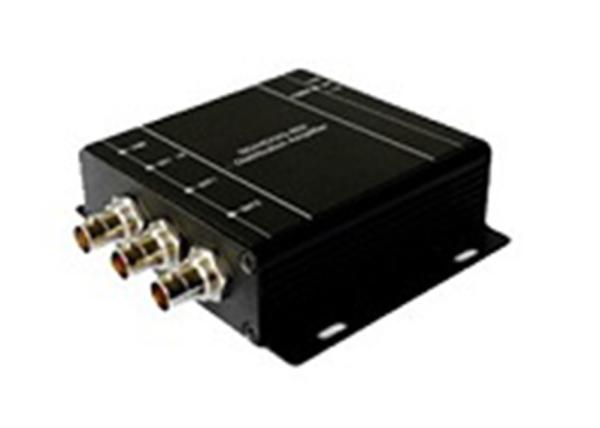

    1x2 SDI Distribution Amplifier with 1 Input And 2 Outputs

    1x2 SDI Distribution Amplifier 1 Input and 2 Outputs


    Technical Parameters


    Video
    Video interfaceBNC
    Video input/output impedance75Ω
    Video input/output voltageTypical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
    Video Bits RateMax 3.2Gb/s
    Differential gain (10%~90% APL)<1%
    Video input1ch
    Video output2ch
    Electrical
    Power Input100VAC to 220VAC
    Power consumption<3W
    Mechanical
    CasingMetal Case
    Mounting OptionsRack-mount
    Environmental
    Working Temperature-20℃~+70℃
    Storage Temperature-40℃~+80℃
    Working Humidity0~95%
    MTBF≥100000 hours

    Overview

    1x2 SDI Distribution Amplifier 1 Input and 2 Outputs is a reliable desktop 1x2 SDI distribution amplifier, features 1 input and 2 outputs, which can split one SD/HD/3G-SDI video source to two video equipments without loss of signal.


    Features

    Comply with SMPTE-424M, SMPTE-292M and SMPTE-259M standard, supports 2.97Gb/s, 1.485Gb/s and 270Mb/s
    1080P@60,50,30,25,24,1080I@60,50 and 720P@60,50,30,25,24, SD 525i and SD 625i
    Features 1 input and 2 outputs without loss of signal
    Integrated cable equalizer, reclocker and cable driver
    Embedded ESD and surge protection circuit to prevent damage from static and thunder


    Packaging & Shipping

    ● All of our package are international standard package

    ● We will deliver our products as soon as the order confirmed
