Managed 10GB Ethernet Fiber POE Switch 2 10GB SFP+ Slots and 8 Gigabit POE Ports

Technical Parameter

Product Overview

AEO-8MSD208M switch is a new generation of green and energy-saving management Gigabit Ethernet access industrial switch. As the ultimate cost-effective industrial switch, it supports ERPS ring network and one-button ring network to build a highly available and reliable industrial access network. It can be widely used in industrial scenarios with Ethernet access such as smart city, smart transportation, smart pipe corridor, and smart industry.

Features

ERPS ring network protocol, network high availability

*The ERPS protocol is used to build an Ethernet ring network, which simplifies deployment and provides redundant links. When devices and links fail, the network can quickly heal itself (less than 50ms), ensuring service continuity and building a highly available network.

*Support one-key ring network, without complicated function configuration, you can directly use.

Fanless design, green communication

*All adopt fanless design, while reducing the power consumption of the device, the silent design allows you to avoid the nuisance of noise.

Superior industrial quality, adapt to harsh environment

*The working environment temperature range is -40℃ to 85℃, and the relative humidity range of the working environment is 5-95% without condensation. Can adapt to a variety of harsh application environment.

*Other dust, lightning, surge, fast pulse group anti-interference, anti-static interference and so on have reached a higher level of protection.

Non-blocking high-speed forwarding

*All ports provide wire-speed Layer 2 switching to ensure non-blocking packet forwarding.

*Provides up to 16K MAC addresses, which provides conditions for subsequent expansion of users and greatly facilitates user expansion and application.

Easy to use management

*Supports WEB management, provides a simple and easy-to-use operation interface, simple function configuration, and intuitive view of device running status information.

POE power supply

*The equipment supports POE power and supports AF/AT standards and provide up to 30W of power. With power over Ethernet, the strong current wiring from the access end to the terminal can be omitted.

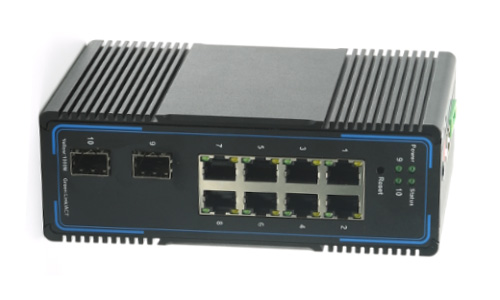

Product picture
